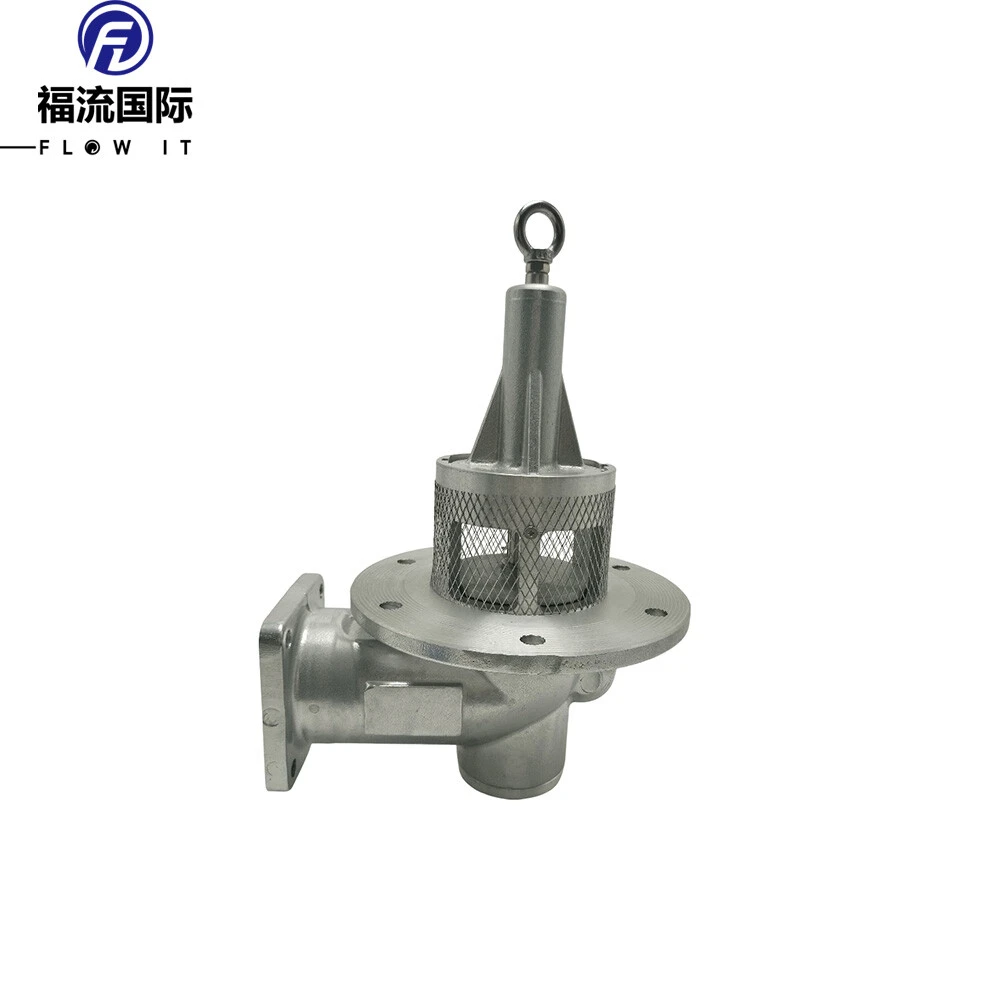

Features & Benifit

High quality die cast body and component materials, to international

Standards, are used for durability and performance.

External shear groove meets TTMA and NTTC DOT 406 to limit product spillage in the event of an accident.

Closure by self-centring plunger and durable compression spring.

Removable bonnet assembly enables seal change without removing valve from the tank truck.

Compact body reduces fitting space required.

Flanges to TW standard, square outlet.

Screen fi lter fi tted as standard to prevent seal damage.

Manual opening device for emergency discharge of cargo.

Easy servicing allows the air cylinder piston assembly to be replaced without removing the valve from the tank pipework.

Specification

Size: Fitting Part 3", Flange 4:

Material of Body: Aluminium Alloy

Material of Sealing Ring: NBR

Operation Mode: Manual

Operation Air Pressure: 0.3MPa~0.6MPa

Temperature Range: -20~+70ºC
